Use
Detection by conductivity provides a simple and economical solution for detecting levels for electrically conductive products, even if their conductivity is low. Conventional applications: High level security, Protection of pumps against dry running, control between a minimum and a maximum. Different combinations of electrodes provide a variety of applications:
- Detecting one or more levels in a tank,
- Regulation between two levels in a tank, etc.

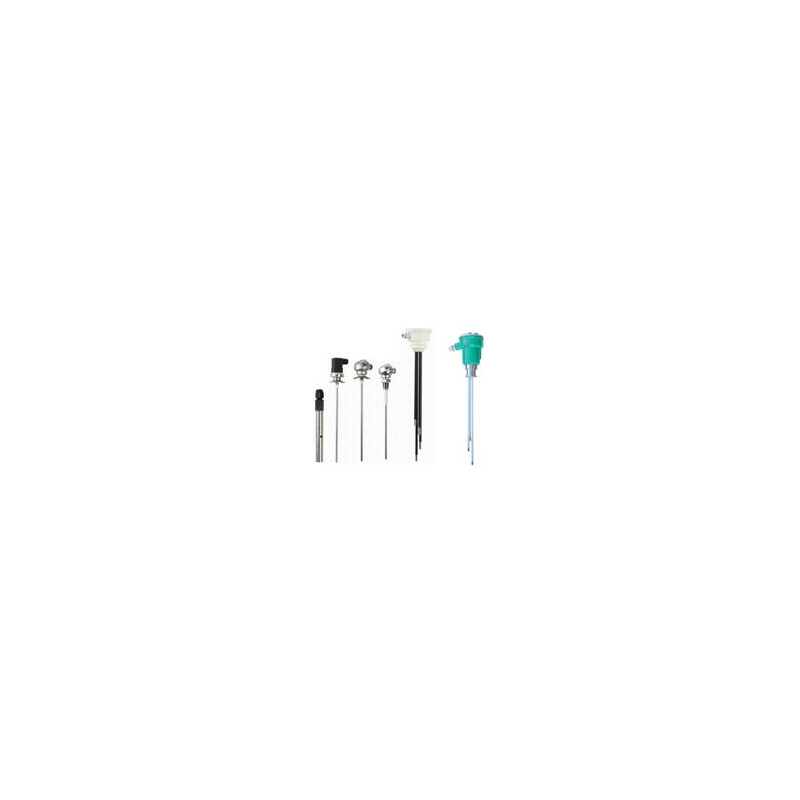

2. 2. The Probe, matched to the specific features of the installation - temperature, pressure, type of fitting, length, etc. - comprises:
- An electrical connection head,
- A process fitting: Flange, Threaded Coupling, Clamp connection, etc.
- One or more electrodes, rigid or cabled.
Functions
The Electronic Detector delivers an alternating current which crosses the circuit formed by:
- an ELECTRODE set to the level to be detected,
- one Reference ELECTRODE (which may be the tank itself),
- the detected LIQUID, which must be electrically conductive, even slightly.
When the LIQUID closes the circuit between the electrodes, the current acts on the Detector and its relay output (changeover contact) gives an alarm, control or regulation.
Caractéristiques Techniques
Sondes et Electrodes Conductives : elles sont détaillées dans les notices spécifiques à chaque appareil.
|
Code notice |
Désignation |
Fixation |
Tiges |
|
Sonde Multi-Electrodes |
Raccord G1" ou G2" |
Rigide(s) ou à Câble(s) |
|
|
RL6 Nouveauté |
Sonde Multi-Electrodes |
Raccord PVC/INOX et CLAMP/SMS |
Rigide Isolée PVC ou PTFE |
|
Sonde Multi-Electrodes |
Bride PVC |
Tige(s) Rigide(s) |
|
|
Sonde Simple |
Raccord Clamp |
||
|
Electrode TRIPLE |
Raccord G1/2, en PVC |
Tiges Nues |
|
|
Electrode Simple |
Câbles - pour Puits ou Forages |
||
|
Electrode Simple |
Raccord G1/4 en PTFE (A11FV) ou R1/4 en Inox (A11FVX) |
||
|
Electrode Simple |
Raccord G1/2 (A11RL) ou raccord G3/8 (A11TL) |
||
|
Sonde Simple |
Raccord G1/2 en Inox |
Tige Rigide (A11W) ou Câble (A11Y) |
|
Sous réserve de modification sans préavis
